Product Description

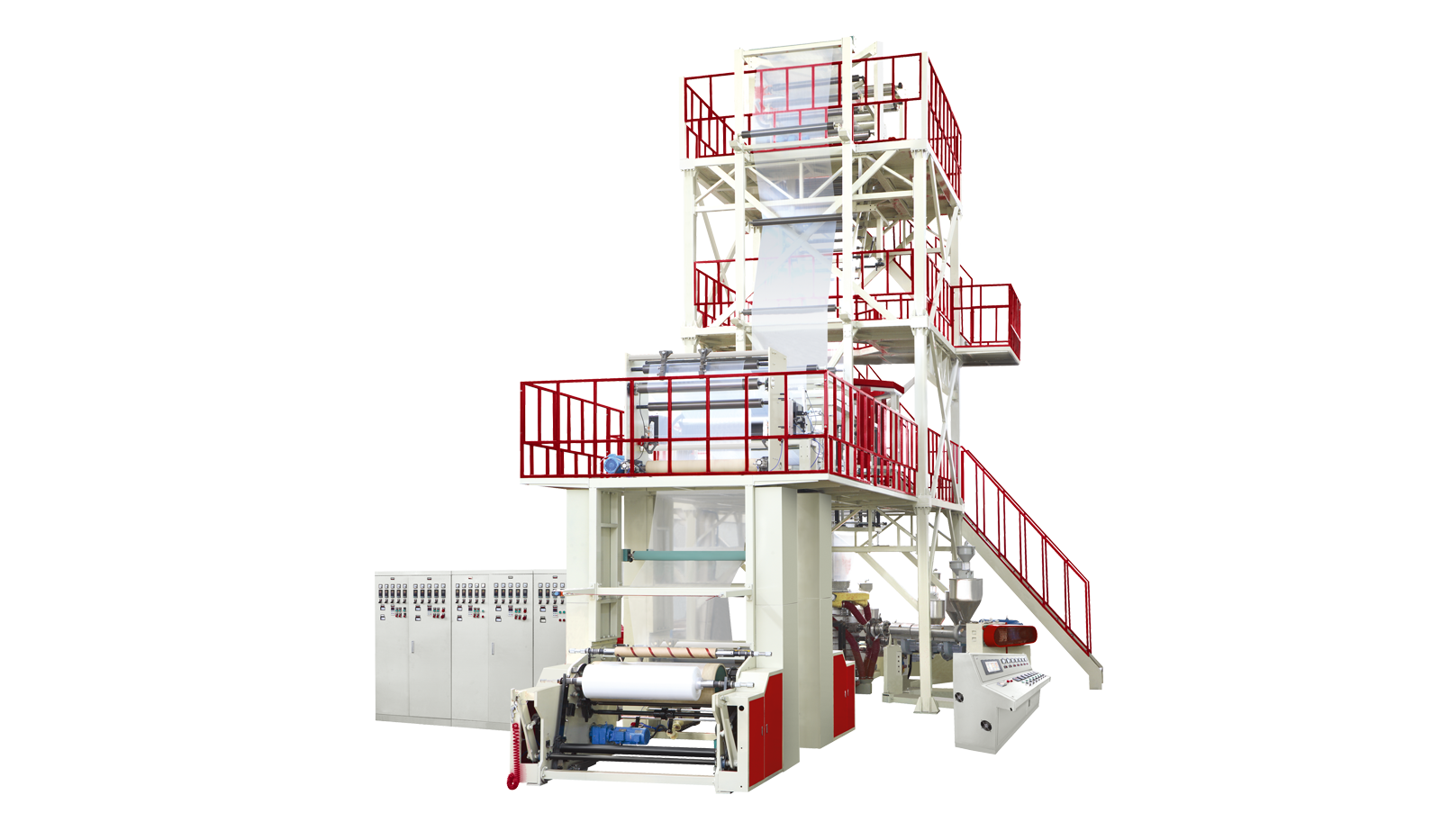

Its main unit is equipped with an extruder with the forced feedstock function, precision double vents air ring, horizontal rotation and traction system, IBC inner cooling system, full-automatic surface-friction double-cut and double winders, and computer-centralized-control system, etc. to meet customers’ requirement for high-quality and high-output film blowing equipment. Compared with similar equipment, this unit has advantages such as more compact structure, higher output, higher-quality production, less energy consumption, and easier operation. It can be widely used for manufacturing different packaging films with high transparency, to create a considerable economic benefit for you.

Technical Specifications

Model F3B-TR-1300 F3B-TR-1500 F3B-TR-1700 F3B-TR-2300
Applicable Materials LDPE  LLDPE  mLLDPE
Width of Film 1200 1400 1600 2100
Thickness of Film 0.02-0.20
Max. Extrusion Output 160kg/h 200kg/h 240kg/h 340kg/h
Screw Diameter Φ45/Φ55/Φ45 Φ50/Φ60/Φ50 Φ55/Φ65/Φ55 Φ70/Φ85/Φ70
Screw L/D Ratio 30:1
Rotate Speed of Screw 10-100r/min
Power of Main Engine 15/22/15 18.5/30/18.5 22/37/22 37/55/37
Air-ring Structure Double Vents Air Ring
Rotation Traction Form Horizontal±360°
Total Power 120 140 160 200
Weight of Machine 12 14 16 20
Overall Dimension 9.5x5x9 10x5.5x9.5 10x6x10.5 10.5x7x11
The data is subject to change without prior notice.

Equipments For Selection

1.IBC Film Tube Inner Cooling System
2.Computer Centralized Control System

IBC Inner Cooling Die-head

360° Horizontal Traction Rotations
Full-automatic Take-up
