Hongqi mainly produces blown film machine, printing machine, bag machine and other mechanical equipment, the products sell well all over the country, exported to Southeast Asia, the Middle East, Central Asia, Russia, Europe, South America, North America, Africa and other dozens of countries and regions.

Product Categories

Product Description

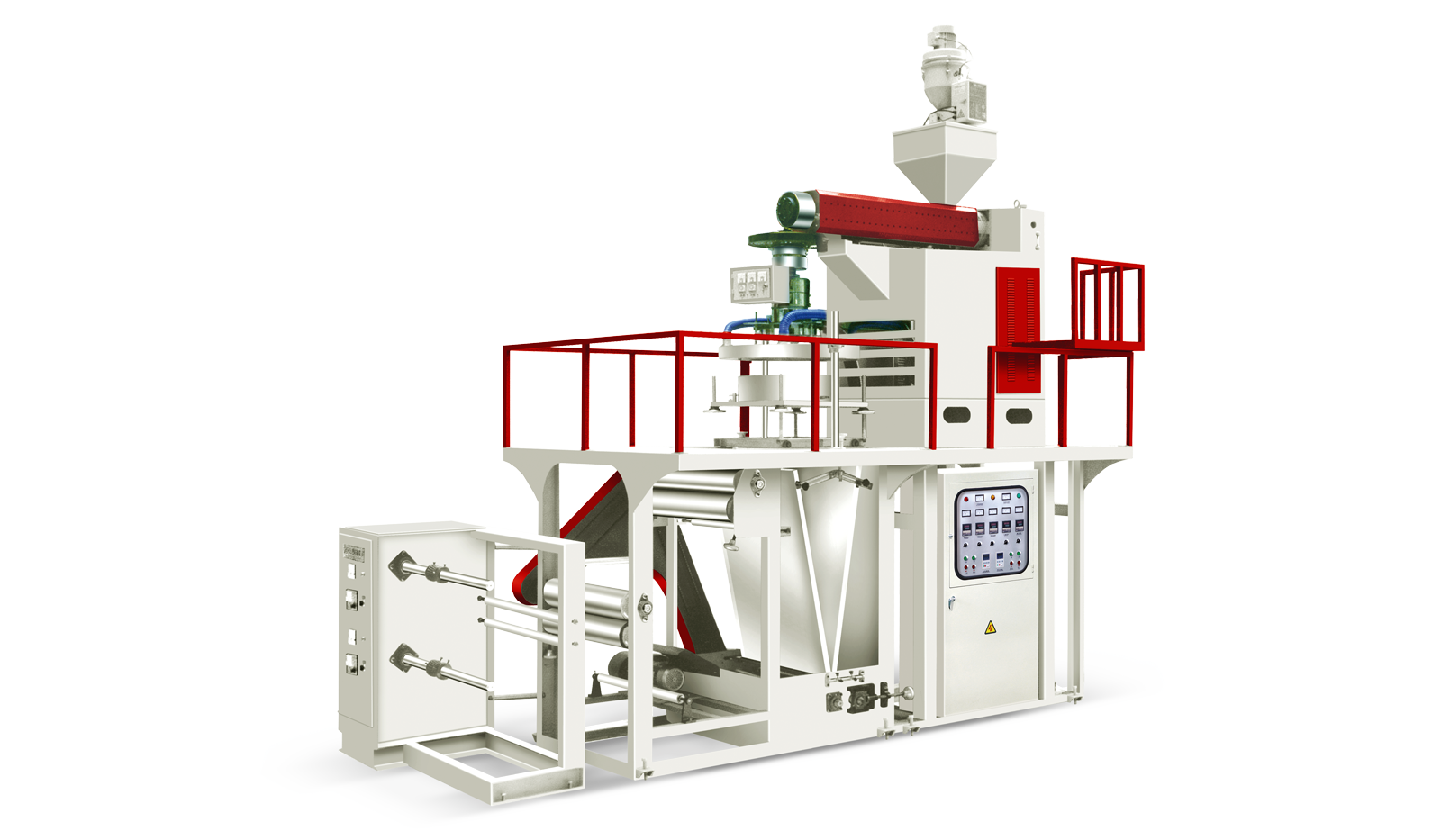

The unit is used to blow plastic films with PP as raw material, and widely used for packaging food, apparel & textile, daily necessities and industrial supplies. The cylinders and screw stems of extruder of the unit are made of high-quality alloy steel and have optimum hardness and strong corrosion resistance thanks to the nitridation and precision finishing process.

Technical Specifications

Model FB-G-600 FB-G-800
Applicable Materials PP
Width of Film 600 800
Thickness of Film 0.015-0.08
Max. Extrusion Output 38kg/h 46kg/h
Screw Diameter Φ65 Φ75
Screw L/D Ratio 28:1
Rotate Speed of Screw 10-100r/min
Power of Main Engine 15 18.5
Diameter of Die Orifice Φ250 Φ350
Total Power 28 36
Weight of Machine 3 3.5
Overall Dimension 4.8x2x4 5x2.2x4.2
The data is subject to change without prior notice.
