Hongqi mainly produces blown film machine, printing machine, bag machine and other mechanical equipment, the products sell well all over the country, exported to Southeast Asia, the Middle East, Central Asia, Russia, Europe, South America, North America, Africa and other dozens of countries and regions.

Product Categories

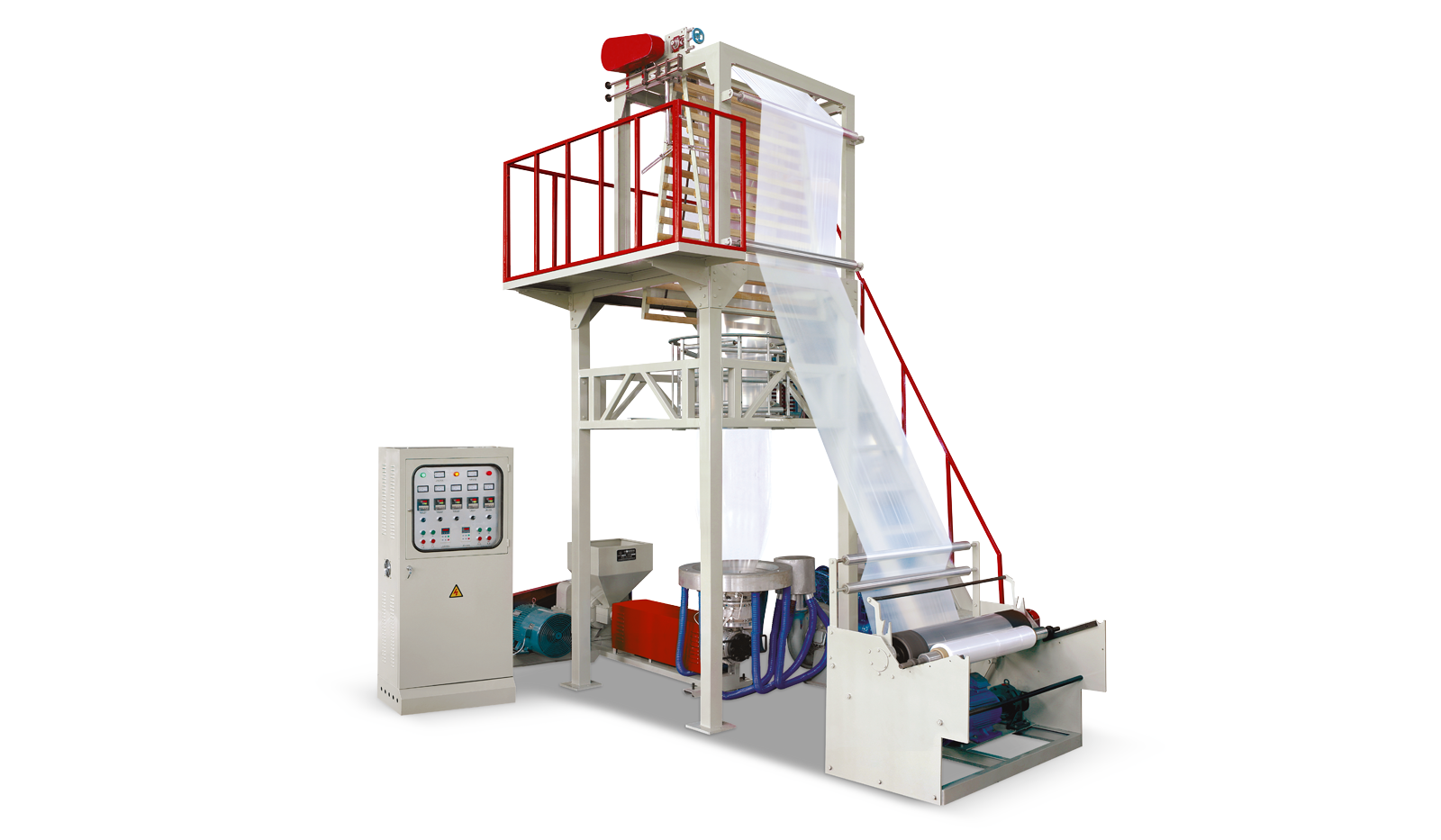

FB-B LDPE&HDPE Film Blowing Machine

Model：FB-B-600|F2B-B-800|FB-B-1000|FB-B-1200|FB-B-1500|FB-B-2000|FB-B-2500|FB-B-3000 Hotline：86-577-65607682 Foreign trade：86-577-65607673 E-MAIL：hongqipm@china-pm.com
Wechat Q Q Q Q Q Q
Add To Inquiry Print page Collection page

Prev： FB-A Rotary Die Head Film Blowing Machine

Next： FB-E High&Lowe Pressure Film Blowing Machine

Product Description

Its main unit can be used to manufacture plastic films with LDPE, LLDPE and HDPE as raw materials. It is widely used for liquid packaging, printing and recombination, apparel & textile packaging, and industrial packaging.
The cylinders and screw stems of the extruder in its main unit are made of high-quality alloy steel and have optimum hardness and powerful corrosion resistance thanks to the nitridation and precision finishing process. The auxiliary machine has a platform workbench for more convenient operation and is equipped with a bubble stabilizing ring. The coiling device with a torque motor can maintain appropriate tension, orderly rolling-up and convenient change of cylinders.

Technical Specifications

Model FB-B-600 FB-B-800 FB-B-1000 FB-B-1200
Applicable Materials LDPE  LLDPE  HDPE
Width of Film 600 800 1000 1200
Thickness of Film 0.008-0.10
Max. Extrusion Output 40kg/h 50kg/h 60kg/h 70kg/h
Screw Diameter Φ50 Φ55 Φ60 Φ65
Screw L/D Ratio 28:1
Rotate Speed of Screw 10-100r/min
Power of Main Engine 11 15 18.5 22
Diameter of Die Orifice Φ80/Φ120 Φ80/Φ160 Φ120/Φ220 Φ130/Φ250
Total Power 18 24 28 40
Weight of Machine 3 3.6 4.2 5
Overall Dimension 4.2x2x3.8 4.6x2.2x4 5x2.4x4.5 5x2.6x4.8
Model FB-B-1500 FB-B-2000 FB-B-2500 FB-B-3000
Applicable Materials LDPE  LLDPE   HDPE
Width of Film 1500 2000 2500 3000
Thickness of Film 0.01-0.10 0.02-0.10 0.02-0.10 0.02-0.10
Max. Extrusion Output 85kg/h 140kg/h 180kg/h 220kg/h
Screw Diameter Φ75 Φ100 Φ110 Φ120
Screw L/D Ratio 28:1
Rotate Speed of Screw 10-100r/min
Power of Main Engine 30 55 75 90
Diameter of Die Orifice Φ200/Φ350 Φ500 Φ600 Φ750
Total Power 52 84 110 130
Weight of Machine 6 7.6 9.8 12
Overall Dimension 6x2.9x6.2 8x3.5x8 9x4.2x9.6 10x4.6x11
The data is subject to change without prior notice.
