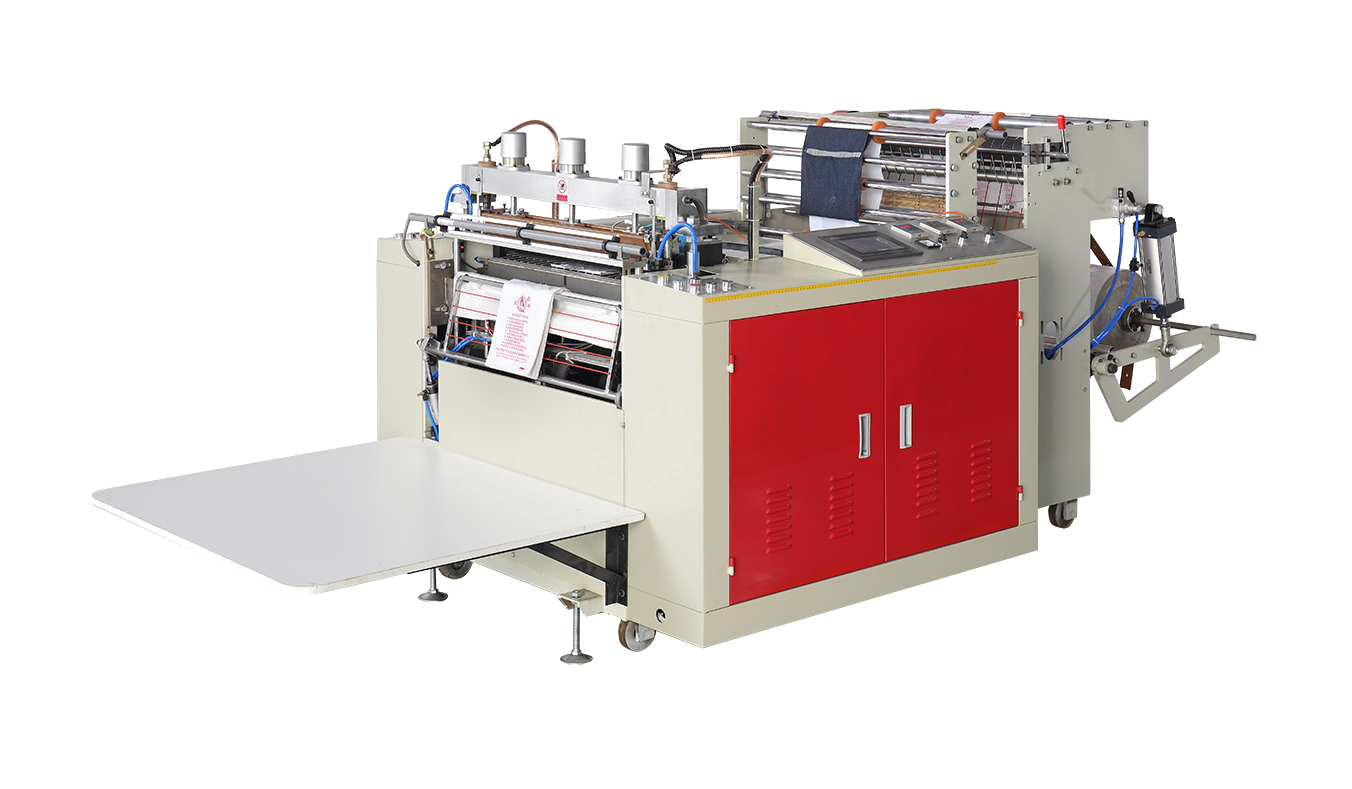

GDR High Speed Heat Cutting Bag Making Machine

Model:DFR-500|DFR-700 Hotline:86-577-65607682 Foreign trade:86-577-65607673

Product Description

Made a printed vest bag, flat pocket; the main motor using variable frequency motor, so you more power, speed more comfortable. Good performance of the color tracker, so that the length of sealing and cutting more accurate, less error. The use of advanced computer, length adjustment is convenient and accurate.

Technical Parameters

Model DFR-500 DFR-700
Bag-making width 500mm  700mm
Bag-making length 800mm  1000mm
Bag-making thickness 0.01-0.05mm 0.01-0.05mm
Speed range 500-150pcs/min 50-150pcs/min
Power of Main Engine 0.75 1.1
Heating power 2 2.4
Total Power 3.5 4.5
Weight of Machine 800 900
Overall Dimension 3000×1100×1500 3000x1300×1500
The data is subject to change without prior notice.
