Hongqi mainly produces blown film machine, printing machine, bag machine and other mechanical equipment, the products sell well all over the country, exported to Southeast Asia, the Middle East, Central Asia, Russia, Europe, South America, North America, Africa and other dozens of countries and regions.

Product Categories

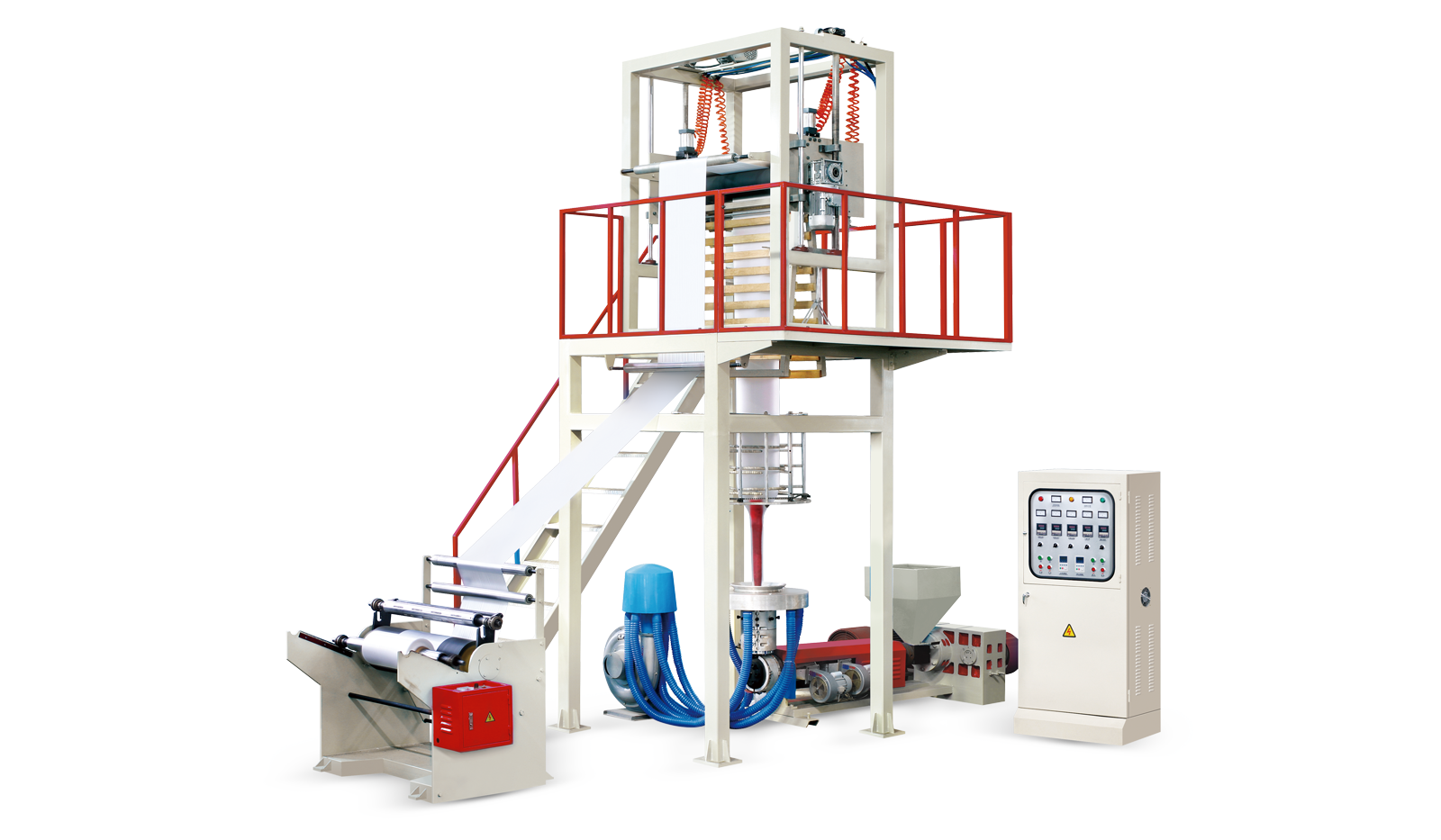

FB-D Middle Speed HDPE Film Blowing Machine

Model:FB-D-600|FB-D-800|FB-D-1000|FB-D-1200 Hotline:86-577-65607682 Foreign trade:86-577-65607673 E-MAIL:hongqipm@china-pm.com

Product Description

The unit is used to blow plastic films with LDPE, LLDPE and HDPE as raw materials, and widely used for packaging food, apparel & textile, daily necessities and industrial supplies. The extruder of the unit is designed with a special screw stem and characterized by high output and good plasticization and so on.

Technical Specifications

Model FB-D-600 FB-D-800 FB-D-1000 FB-D-1200
Applicable Materials LDPE  LLDPE  HDPE
Width of Film 600 800 1000 1200
Thickness of Film 0.01-0.10
Max. Extrusion Output 60kg/h 80kg/h 100kg/h 120kg/h
Screw Diameter Φ50 Φ55 Φ60 Φ65
Screw L/D Ratio 30:1
Rotate Speed of Screw 10-100r/min
Power of Main Engine 18.5 22 30 37
Diameter of Die Orifice Φ80/Φ120 Φ80/Φ160 Φ120/Φ220 Φ130/Φ250
Total Power 28 36 42 52
Weight of Machine 3 3.6 4.2 5
Overall Dimension 4.6x2x4 4.8x2.2x4.3 5x2.4x4.8 6.8x2.6x5.5
The data is subject to change without prior notice.
