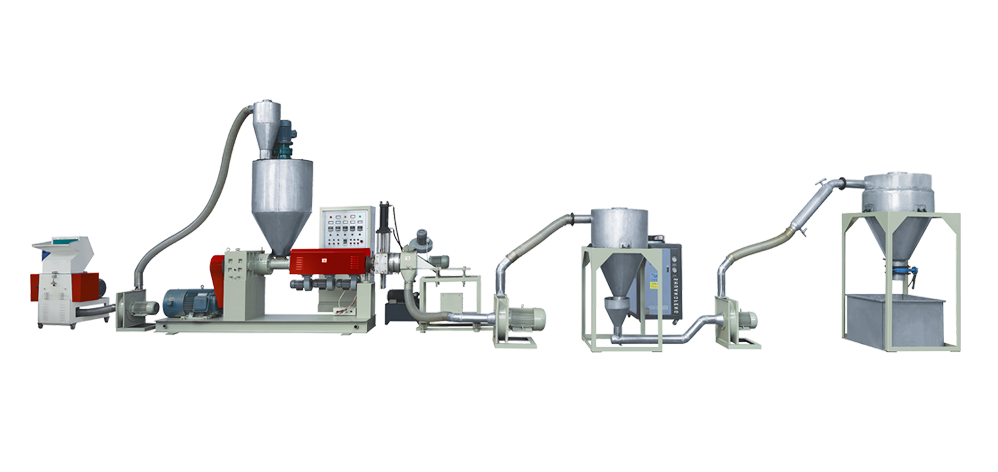

FLZ-90/100/110/120 Wind Cooling Plastic Recycling Machine

Model:FLZ-90|FLZ-100|FLZ-110|FLZ-120 Hotline:86-577-65607682 Foreign trade:86-577-65607673

Product Description

The granulator uses HDPE and LDPE waste films as raw material and extrudes them to produce high-quality, pore- and water-free granules by using an extruder in air-cooling and hot-cutting mode. It is equipped with a forced feeder, a rapid screen-replacing device and an automatic temperature controller.

Technical Specifications

Model FLZ-90 FLZ-100 FLZ-110 FLZ-120
Screw Diameter Φ90 Φ100 Φ110 Φ120
Screw L/D Ratio 20:1
Rotate Speed of Screw 10-100r/min
Power of Main Engine 22 30 37 45
Max. Extrusion Output 80kg/h 100kg/h 130kg/h 150kg/h
Weight of Machine 2600 2800 3000 3200
Overall Dimension 4000x1500x1800 4200x1500x1800 4400x1500x1800 4600x1500x1800
The data is subject to change without prior notice.
