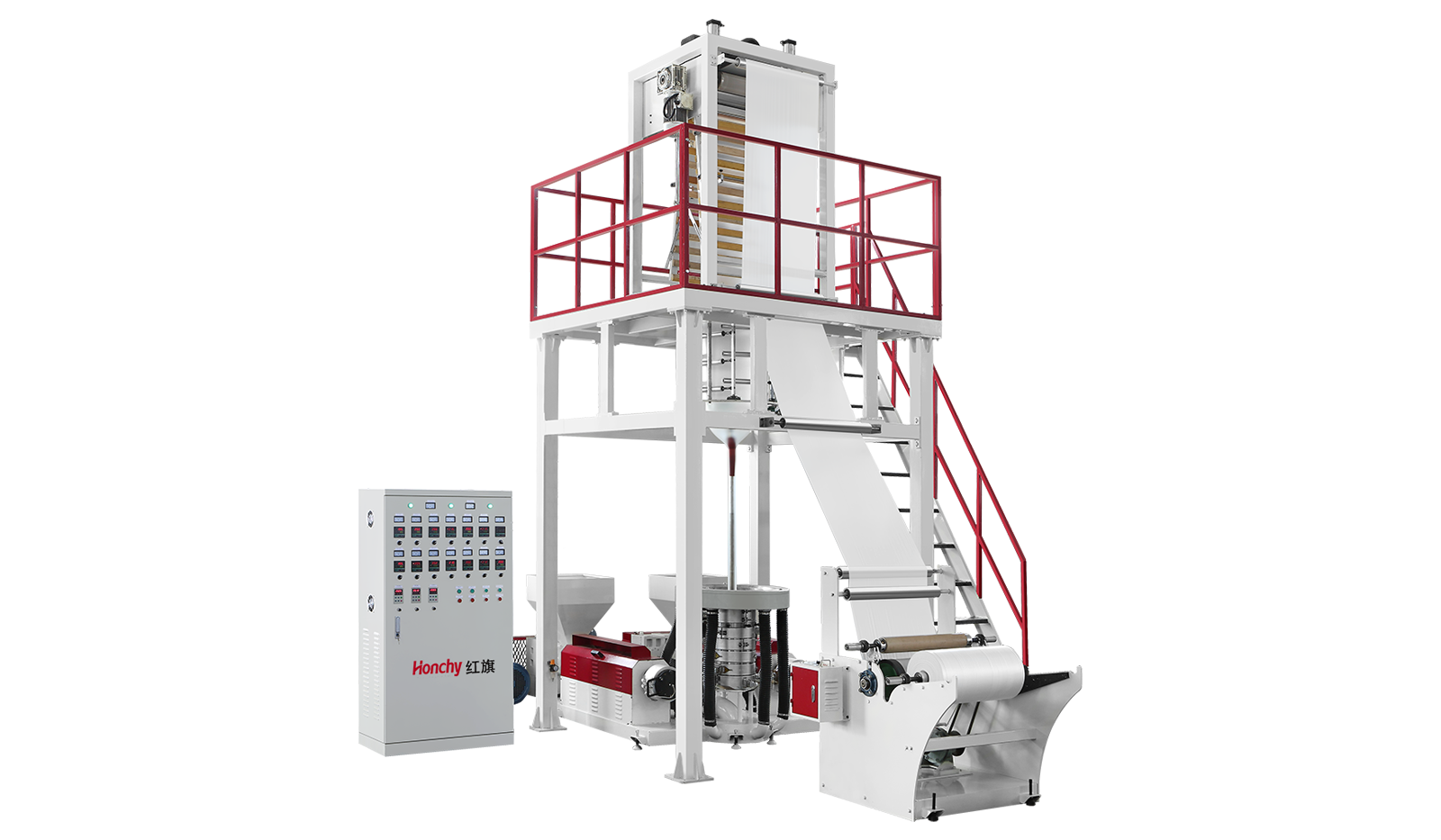

Product Description

Edit ...

Technical Specifications

Model F3B-ABA-700 F3B-ABA-900 F3B-ABA-1100 F3B-ABA-1300 F3B-ABA-1600
Applicable Materials LDPE  LLDPE  LDPE
Width of Film 600 800 1000 1200 1500
Thickness of Film 0.008-0.10 0.008-0.10 0.01-0.10 0.01-0.10 0.01-0.10
Max. Extrusion Output HDPE:60kg/h HDPE:75kg/h HDPE:80kg/h HDPE:90kg/h HDPE:110kg/h
LDPE:70kg/h LDPE:85kg/h LDPE:90kg/h LDPE:100kg/h LDPE:120kg/h
Screw Diameter Φ45x2 Φ50x2 Φ50x2 Φ55x2 Φ60x2
Screw L/D Ratio 30:1
Screw Material SAC-645/38CRMOALA
Feeding Tube Material SAC-645/38CRMOALA
Feeding Tube Cooling 180Wx3 180Wx3 180Wx3 180Wx3 180Wx4
Main Motor Power 11kWx2 15kWx2 15kWx2 18.5kWx2 22kWx2
Temperature Control Point 3 3 3 3 4
Screen Changer
For network type Manual Change
Temperature Control Point 1 1 1 1 1
Die Head
Die Diameter HDPE:Φ55mm HDPE:Φ80mm HDPE:Φ110mm HDPE:Φ130mm HDPE:Φ150mm
LDPE:Φ160mm LDPE:Φ180mm LDPE:Φ220mm LDPE:Φ250mm LDPE:Φ300mm
Cooling Air Ring Type Double Air Duct
Blower Power 3kW 4kW 4kW 5.5kW 7.5kW
Extraction device
Pull The Toll width 700 900 1100 1300 1600
The Speed of Extraction 10-80
Trigger Motor Power 1.5kW 2.2kW 2.2kW 3kW 3kW
Stability Ring 1
Winding Device
Coiling Type Back To Back
Effective Width 600 800 1000 1200 1500
Maximum Winding iameter 800
Take The Roll Φ250x700L Φ250x900L Φ250x1100L Φ250x1300L Φ250x1600L
Air Up The Scroll 2 sets
Land size (m) 5x3.5x5 5.5x3.7x5 6x3.9x5.2 6.5x4.1x5.2 7x4.2x6
Optional device Corona processor, hydraulic fast screen changer, back to back automatic coiler, rotary head
The data is subject to change without prior notice.

Equipments For Selection

1.IBC film bubble internal cooling system
2. Computer centralized control system

IBC internal cooling die

360 Horizontal traction rotation
Automatic coiling
