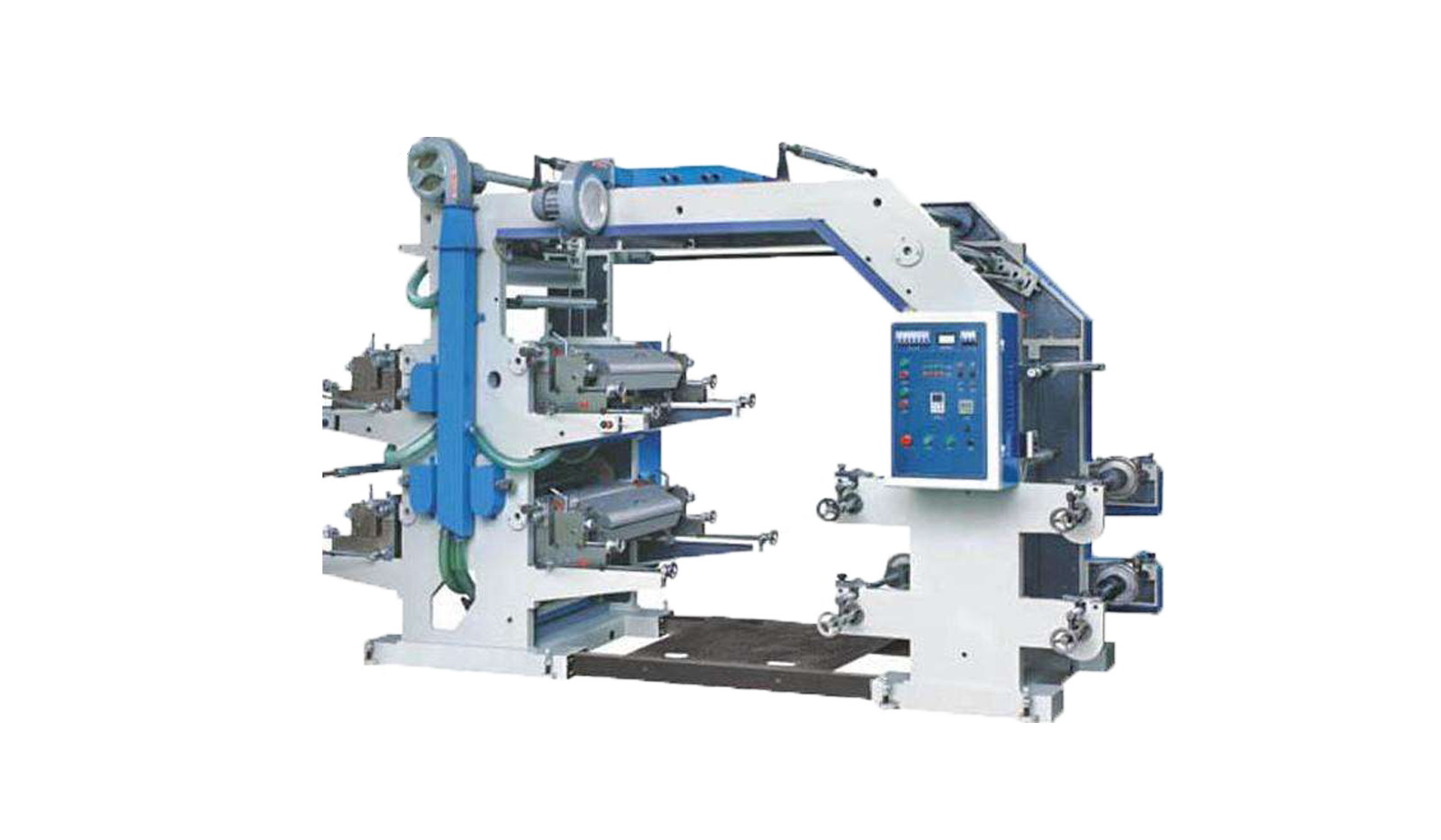

YT-4600/4800/41000 4 Colors Flexo Printing Machine

Model:YT-4600|YT-4800|YT-41000 Hotline:86-577-65607682 Foreign trade:86-577-65607673 E-MAIL:hongqipm@china-pm.com

Product Description

Four-color Flexible Letterpress Machine

Technical Specifications

Model YT-4600 YT-4800 YT-41000
Max. width of printing material 600mm  800mm  1000mm
Max. printing width 560mm  760mm  960mm
Length range of printed product 190-960mm 190-960mm 190-960mm
Max. diameter of roll materials Φ450mm Φ450mm Φ450mm
Printing speed 5~50m/min 5~50m/min 5~50m/min
Thickness of plate (including two-sided glue paper) 2.38mm 2.38mm 2.38mm
Total Power 11kw 13kw 15kw
Weight of Machine 3000 3500 4000
Overall Dimension 4200×1600×2400 4200×1800×2400 4200×2000×2400
The data is subject to change without prior notice.
