Product Description

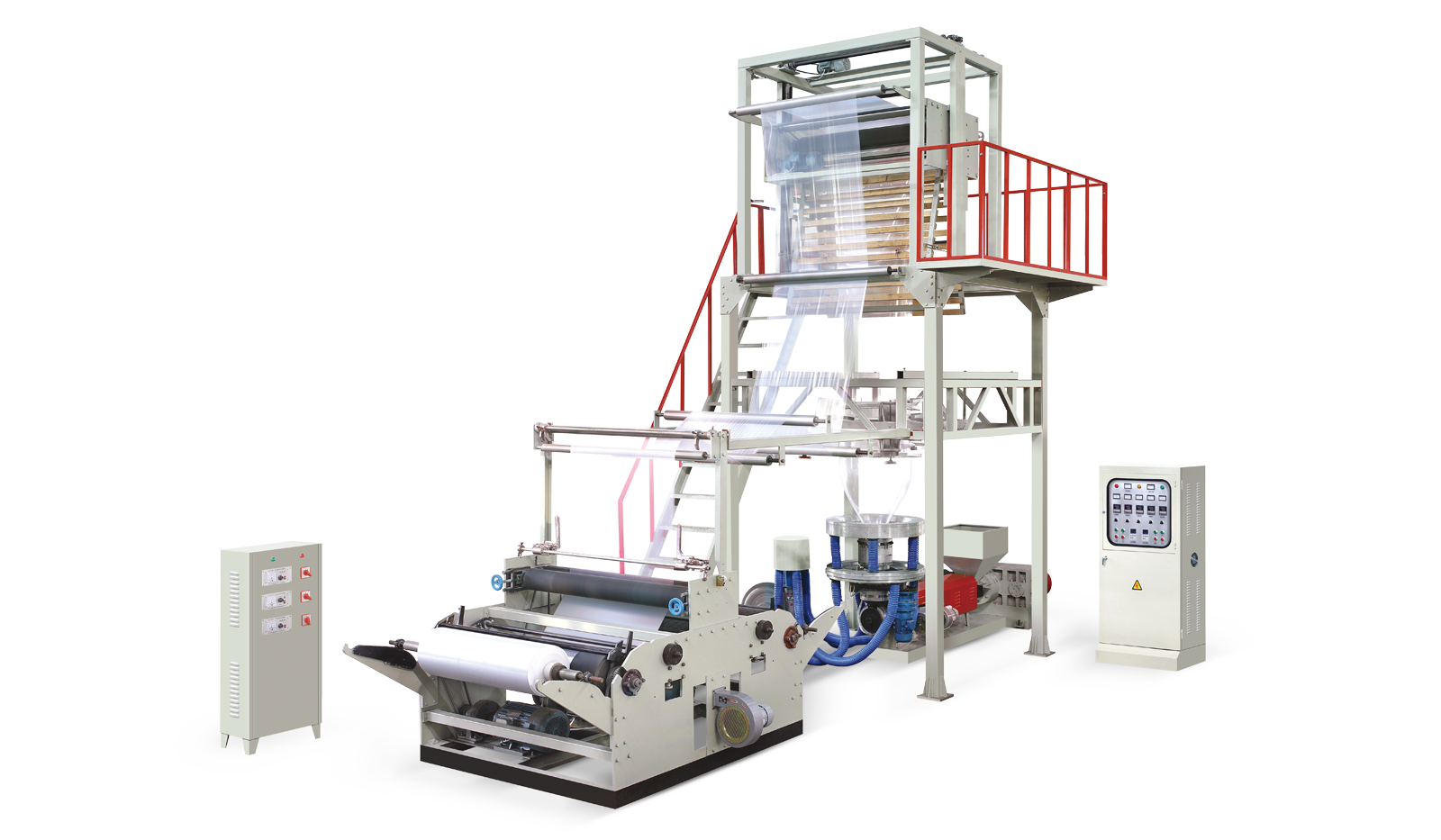

The unit is used to blow PE heat shrinkable films, and widely used for food, beer bottles, floor and pallets in various sizes etc. The cylinders and screw stems of extruder of the unit are made of high-quality alloy steels and have optimum hardness and strong corrosion resistance after nitridation and precision finishing.

Technical Specifications

Model FB-C-600 FB-C-800 FB-C-1000 FB-C-1200
Applicable Materials LDPE  LLDPE  HDPE
Width of Film 600 800 1000 1200
Thickness of Film 0.01-0.10
Max. Extrusion Output 40kg/h 50kg/h 60kg/h 70kg/h
Screw Diameter Φ50 Φ55 Φ60 Φ65
Screw L/D Ratio 28:1
Rotate Speed of Screw 10-100r/min
Power of Main Engine 11 15 18.5 22
Diameter of Die Orifice Φ80/Φ120 Φ80/Φ160 Φ120/Φ220 Φ130/Φ250
Total Power 20 26 30 42
Weight of Machine 3 3.6 4.2 5
Overall Dimension 5.6x2x3.8 6x2.2x4 6.5x2.4x4.5 6.8x2.6x4.8
The data is subject to change without prior notice.
